Understanding the Functionality of Motion Reference Units
Motion Reference Units (MRUs) play a pivotal role in navigational technologies, particularly in applications requiring high accuracy in motion measurement and orientation data. This article delves into the operational mechanics of MRUs, highlighting the contributions and products of Inertial Labs, a leader in inertial sensor technology.
What is a Motion Reference Unit?
A Motion Reference Unit (MRU) is an advanced device that integrates various sensors to measure and report an object's motion relative to a fixed coordinate system. MRUs are typically used in marine applications such as offshore structures and vessels, where precise data on pitch, roll, and heave motions are crucial. They also find applications in robotics, aerospace, and surveying industries.
Core Components of an MRU
An MRU primarily consists of gyroscopes, accelerometers, and a barometric sensor. These sensors collectively provide crucial data for various applications:
- Gyroscopes provide real-time rotation measurements about three axes, essential for determining orientation and aiding in navigation computations.
- Accelerometers measure linear acceleration along three axes. Once processed, this acceleration data can infer motion characteristics and provide corrections to the gyroscopes.
- Barometric Sensors provide ongoing pressure measurements to the unit.
- Advanced MRUs often include additional sensors such as magnetometers or GPS modules, enhancing their capability to provide more comprehensive navigational data.
How Does an MRU Work?
Understanding the nuanced technical processes that allow these devices to provide accurate and reliable motion data is essential. This section breaks down the advanced methodologies and underlying principles that govern the operation of MRUs, illustrating the complexities involved in motion detection and analysis.
Sensor Technology and Signal Processing
The core of MRU technology lies in its sensor array—typically consisting of accelerometers, gyroscopes, and, occasionally, magnetometers. Here's how these sensors function within an MRU:
- Accelerometers: These sensors detect acceleration along their axes by measuring the displacement of a mass suspended within a spring. When an accelerometer moves or experiences vibration, the internal mass shifts, creating a measurable force proportional to the acceleration. This force is then converted into an electrical signal, which can be processed to infer motion parameters such as velocity after integration and displacement after double integration.
- Gyroscopes: Gyroscopes measure the angular rate using either mechanical spin principles or optical phenomena like the Sagnac effect (in the case of fiber optic gyros) or Coriolis forces (in the case of MEMS gyros). These measurements provide data on how fast and in what direction an object turns around each axis.
- Magnetometers: Often included to enhance heading information, magnetometers measure the strength and direction of magnetic fields. With gyroscopic data, magnetometers help correct long-term drift errors in heading data derived from gyroscopes alone.
Data Integration and Algorithms
The raw data from MRU sensors is noisy and requires sophisticated signal processing to become functional. This processing involves several steps:
- Filtering: Noise in the sensor signal is mitigated using filters. Commonly, a Kalman filter is employed, which optimally combines the noisy sensor data with a predictive model of the system's dynamics based on the laws of physics. The Kalman filter is particularly effective as it can adapt its estimation process based on the inherent noise characteristics of the sensors and the external environment.
- Sensor Fusion: This is a critical step in MRU functionality where data from various sensors are integrated. Sensor fusion leverages algorithms to combine data from gyroscopes, accelerometers, and magnetometers to estimate the body's orientation and movement comprehensively and accurately. This integrated data helps correct individual sensor biases and errors, providing a robust output even when one of the sensor readings might be temporarily unreliable.
- Data Interpretation and Output: After processing, the MRU calculates critical motion parameters:
Heave: The vertical dynamic motion is essential for applications like wave height monitoring.
Roll and Pitch (Surge and Sway): Lateral and longitudinal tilt angles are crucial for maintaining balance and orientation in marine and aerial vehicles.
Yaw: Also known as heading, this is particularly enhanced by integrating magnetometer data, which is helpful in navigation.
Implementation of Advanced Algorithms
Advanced MRUs implement more complex algorithms to improve accuracy and reliability. These might include:
- Extended Kalman Filter (EKF): This adaptation of the Kalman filter can handle non-linear system models. EKF is widely used in MRUs due to its effectiveness in dealing with complex dynamics where the relationship between sensor readings and motion parameters is not strictly linear.
- Adaptive Filtering: Some MRUs incorporate adaptive filtering techniques that adjust the filter's parameters based on the motion's dynamics, improving performance in varying operational conditions.
- Real-Time Computational Adjustments: High-end MRUs perform real-time adjustments to compensate for sensor errors induced by temperature changes, electromagnetic interference, and other environmental factors.
The technical prowess of an MRU lies in its sophisticated integration of sensor data, advanced signal processing algorithms, and the ability to adapt to different environmental conditions and applications. As technology progresses, integrating artificial intelligence and machine learning in MRUs may further enhance their predictive capabilities and accuracy, paving the way for even more advanced applications across diverse fields. Inertial Labs and other leaders in this technology continuously innovate to push the boundaries of what MRUs can achieve, ensuring they remain indispensable tools in precision navigation and motion analysis.
Inertial Labs and Its Expertise in MRU Technology
Inertial Labs stands out in inertial sensor technology, with a strong reputation for delivering high-quality, reliable, cost-effective solutions. Their MRUs are notable for their precision, robustness, and versatility, catering to various industrial applications.
Essential Products from Inertial Labs
- MRU-B: Designed for buoy and autonomous underwater vehicle (AUV) applications, the MRU-B offers excellent heave, pitch, and roll data even in challenging marine conditions.
- MRU-E: This model is tailored for marine and hydrographic applications, ensuring high accuracy in survey operations, even on high seas. In addition to the MRU-B capabilities, this model can also output heading using magnetometers.

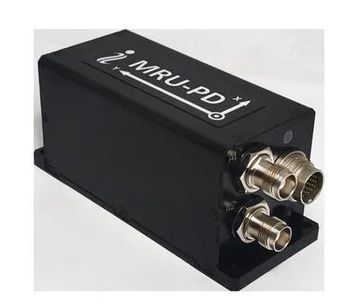

- MRU-P and MRU-PD: Ideal for platform stabilization, the MRU-P provides crucial data for applications requiring precise motion control as it can also output linear velocity and position data. This is due to its integration with a single or dual-antenna GNSS receiver.
- MRU-BS and MRU-PDS: These models differ from their counterparts in that they are wrapped in a subsea enclosure for fully submerged ocean applications.
Each of these products embodies Inertial Labs' commitment to innovation and quality, integrating advanced sensor technologies and algorithms to meet the rigorous demands of various sectors.
Applications of MRUs
The versatility of MRUs allows them to be employed in a myriad of applications:
- Marine Navigation: This technology is used in ships and underwater vehicles to provide data crucial for navigation and stability in dynamic marine environments.
- Platform Stabilization: In aerial or terrestrial platforms, MRUs help maintain stability, which is crucial for applications like aerial photography or construction machinery.
- Robotic Control: Advanced robotics utilize MRUs for precise movement control and orientation, essential in automated and semi-automated systems.
- Surveying and Mapping: MRUs contribute significantly to the accuracy of geophysical and hydrographic survey data.
Advantages of Inertial Labs MRUs
Several advantages distinguish Inertial Labs' MRUs:
- High Accuracy: Their MRUs feature state-of-the-art sensors and sophisticated data processing algorithms, ensuring highly accurate and reliable outputs.
- Durability: Designed to operate in harsh environments, these units are both robust and resilient.
- Integration Capabilities: Inertial Labs' MRUs can be easily integrated with other navigational and sensor systems, enhancing overall system functionality.
- Customer Support and Customization: Inertial Labs provides excellent customer support and customizable solutions to meet specific customer needs.
Motion Reference Units are critical components in the toolkit of modern navigation and stabilization systems across various industries. With its comprehensive range of MRUs and deep expertise, Inertial Labs continues to advance this technology. Their commitment to quality, innovation, and customer satisfaction ensures that their products remain at the forefront of the inertial sensor market, providing valuable tools for accurate motion detection and analysis. Whether at sea, in the air, or on land, MRUs from Inertial Labs offer a reliable solution for complex navigational challenges.
