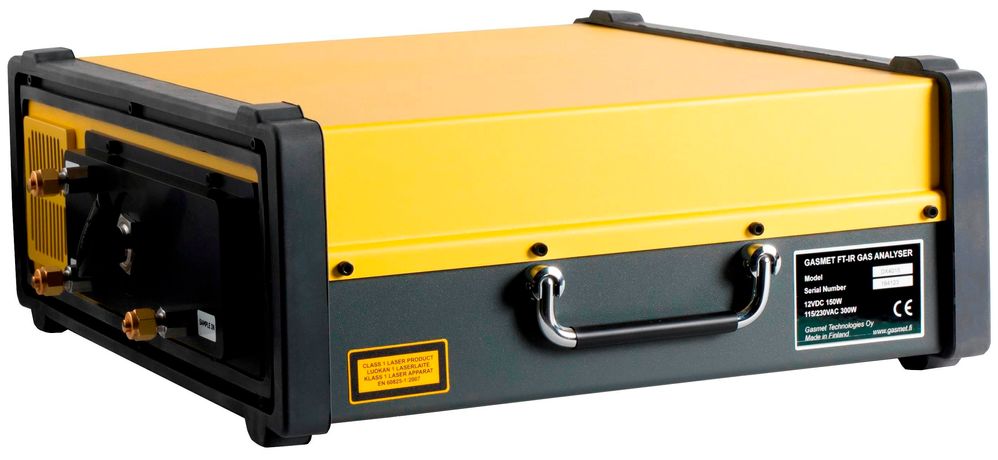

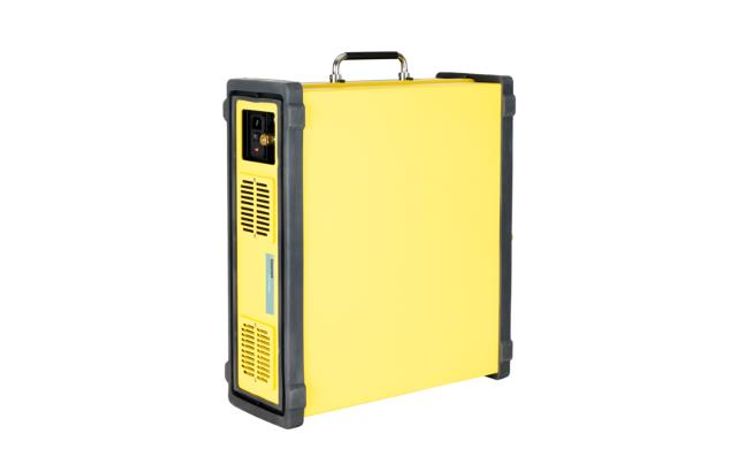

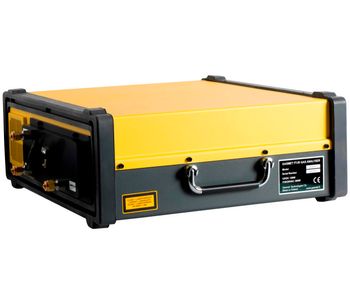

Gasmet - Model DX4015 - Portable FTIR Gas Analyzer for Ambient Air Analysis

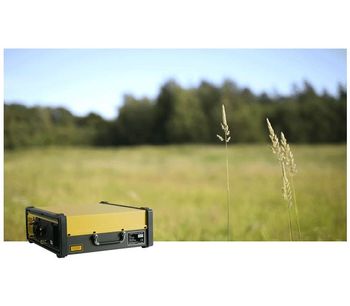

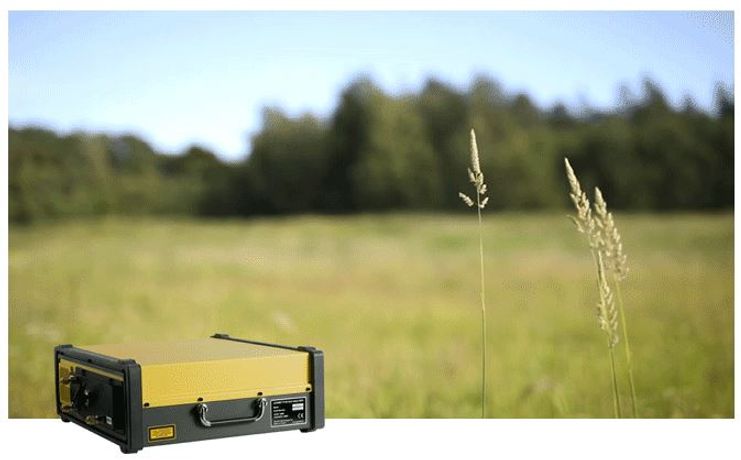

Gasmet DX4015 is a portable FTIR gas analyzer for ambient air analysis. The key features of the Gasmet DX4015 include a high sensitivity sample cell for the lowest possible detection limits and a built-in-pump, which means that there is no need to use a separate sampling system. The analyzer can be powered with 12 VDC from for example an external battery, so it can easily be used in field conditions where mains power is not available. The analyzer can be used for measuring gases in wet conditions (such as greenhouse gases from a swamp).
-
Most popular related searches
Product Details
Key Benefits
- Measures gases in wet conditions, such as in swamps or in humid industrial settings
- Built in pump – no need for a separate sampling system
- Suitable for field conditions
- Simultaneous measurements of all gases
These are the specs
- Cell temperature: 50 °C
- Sample pump: 1.5 l/min (ambient air)
- Power: 100-115 OR 230 V / 50-60 Hz 12 VDC
- Power consumption: 300 W (max)
- Operating temperature: 0 – 40C
- Interface: External computer (RS-232C cable)
- Water vapor (V/V%): 0 – 5%
- Sample cell volume: 0.4 liters
- Measurement range: sub-ppm to % -levels
- Wavenumber range: 4200 – 900 cm-1
- Wavelength range: 2.5 – 10

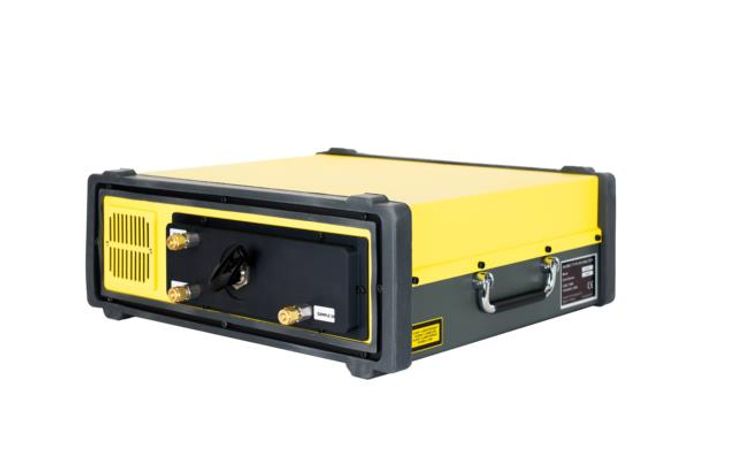

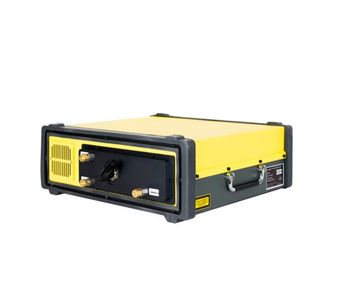

DX4015 Back Panel
- Sample line connections
- Connectors: Inlets Swagelok 6 m, Outlet Swagelok 6 mm
- Manual valve for choosing between Sample in and Zero in
- Sample in is used by the internal pump to draw in sample gas to the sample cell
- Zero in bypasses the pum and goes directly to the sample cell
- Turning the valve to Sample in opens that inlet and closes Zero in and vice versa

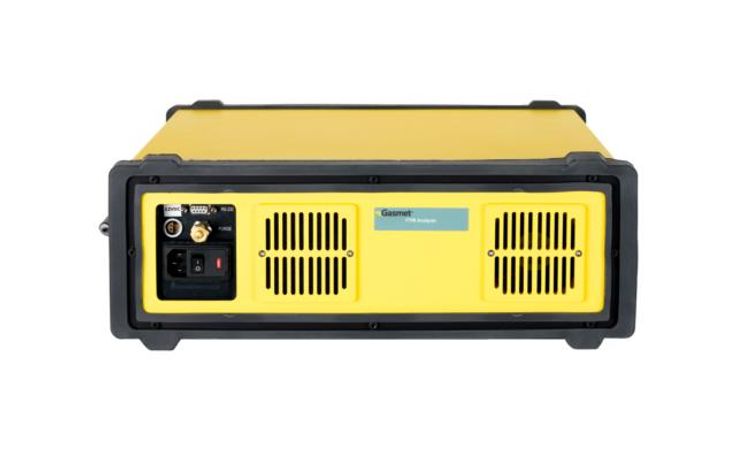

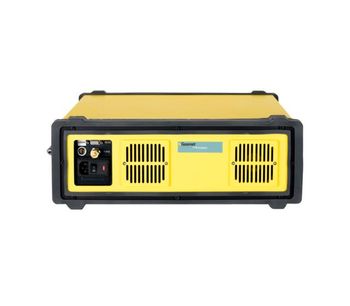

DX4015 Front Panel
Connections for:
- Power – 230 VAC or 12 VDC
- RS-232 connection to computer
- Purge gas inlet for purging the internal optics of analyzer with N2
- This is not necessary in normal operations but is an option when maximum accuracy is needed
- Power on/off switch
Operated With User-Friendly Software
The Gasmet DX4015 is operated with Calcmet software running on an external laptop computer. This provides a flexible and easy-to-use user interface for taking measurements and viewing on-line results. The software analyzes the sample spectrum using a sophisticated algorithm. It comes with an easy-to-use interface allowing simultaneous viewing of concentration results, sample and reference spectra and time trends for analyzed gases. The results are available within seconds.
Ability to Identify Unexpected Gas Components
While many instruments are tuned to look for one target gas, it can be just as vital to monitor the unknown gas(es) present. This is where FTIR-analyzers tend to beat the daylight out of traditional gas detectors. With the Dx4015 you can detect hundreds of compounds at once – even the ones you weren’t expecting to bump into. DX4015 is often used for environmental research. Visit our Greenhouse gas themed virtual booth to hear more and meet our experts.
