MPE - Model IBEX 400FT - Robotic Pipe Inspection Crawler
From Equipment

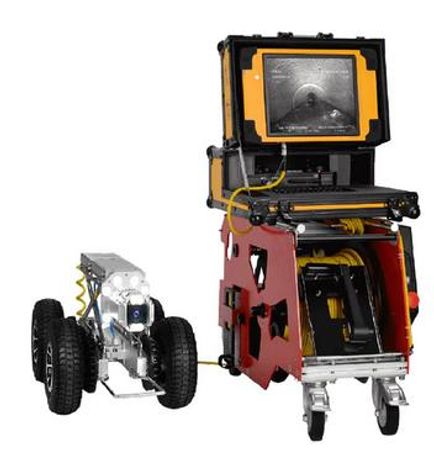

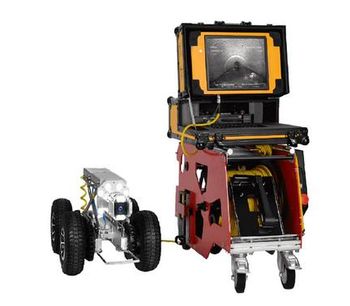

50 mm/1.96' in camera head, 700TVL resolution. Pan and tilt view head. 6-wheel crawler body for 100mm to 600mm. Crawler body for 100mm to 600mm pipes. 12.1' inch display controller (256GB hard disk). Remote control box. l20m/4.72' in cable reel with counter. Includes keyboard and mouse. 110/220V power supply. 48V battery optional. Cable guide appropriate for manhole and underground control. Hook to lower down the crawler. Tools and screws. Can generate reports.
Other Sizes Available
- 393.70ft/ 120m manual reel
- 492 13ft/150m manual reel
- 656.17ft/ 200m manual reel
Optional
- Motorized reel
- Extra manual elevator
Specification
CAMERA:
- Image Sensor: 1/3' Pixel CMOS
- Illumination: 0.01 LUX
- Resolution: 700TVL (PAL: 976 x 592; NTSC: 960 x 592)
- Focus: Motorized
- Light Source: 20x LED Lights
- Axial Rotation Pan:: 360°; Tilt: 180°
- Material: Aluminum
- Working Temperature: -20BCto55BC
- Diameter: 50mm
- Weight: 1.21 Kg
- Ingress Protection Pressure: IP68, S-18 PSI

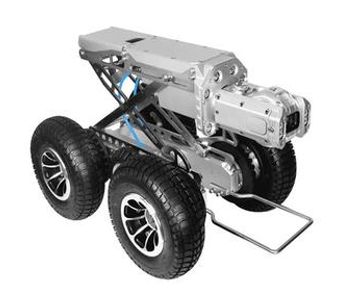

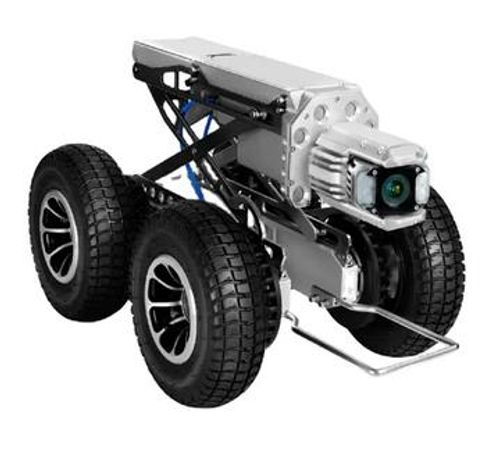

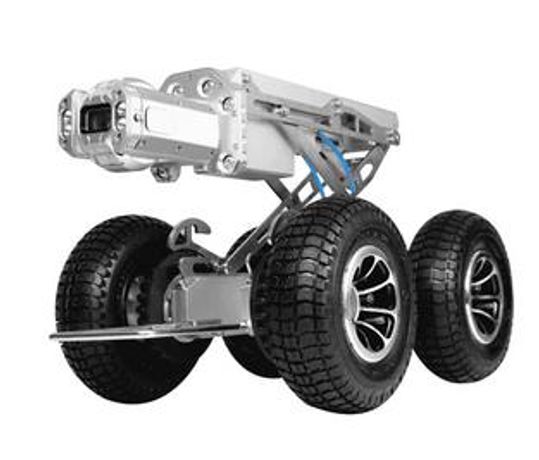

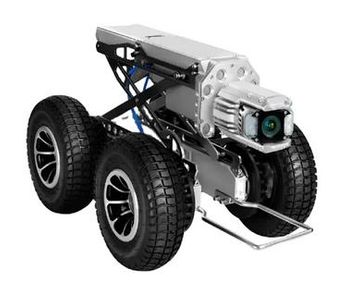

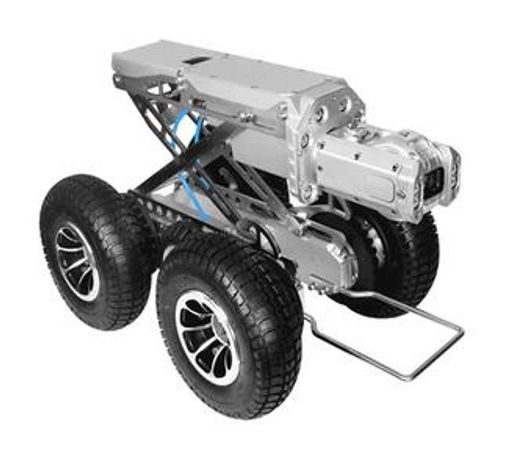

CRAWLER SYSTEM:
- Use: 100-600mm diameter of pipes with 3 types of tires,manual lifting platform optional
- Control Unit: Wireless
- Power Supply: Battery and/or Adapter
- Direction: Moves forward, backwards, turn left or right with anti-overturning design
- Injected: PSI12PSI
- Underwater: Yes, up to 10m underwater
- Capability:
- Ingress Protection: IP68
- Working Temperature: -20BCto55BC
DISPLAY:
- Screen: Touch Screen Capability
- Display Size: 12.1' with 256GB
- Display: Data Speed, distance, pressure, Inclination sensor, time can be displayed on the screen
- Resolution: 1024x768
- Picture: Format JPEG
- Video Format: AVI/MPEG4
- Reports: Can generate a pipe report directly
CONTROLLER:
- Image Zoom: Push-button encoder control image zoom in and out more precisely
- Joystick: Wireless joystick, controls the front camera and motion crawling movementforauser friendly interaction
- Working Distance: Up to 10m
- MANUAL CABLE DRUM:
- Counter: Electronic meter counter, distance can be directly displayed on the screen
- Cable Length: 120m, up to 300m
- Motorized Cable: (OPTIONAL) the cable rolls in or out
- Reel: automatically
- Dimensions: 780x410x490 (mm)
- PACKAGING AND DELIVERY:
- Packaging Details: : In industrial ABS case and stable woodenbox:
- Supply Ability: 20 Set/Sets per Month:
