FPZ - Model MOR_IE3 - MS - Side Channel Blowers
From FPZ Blowers - Side Channel Blowers
The side channel single-impeller and single-stage (MS) blowers represent one of the main FPZ product ranges. A point of reference in many fields of application, the MS blowers are characterized by a compact design that allows a higher installation flexibility compared to other product families.
-
Most popular related searches
Product Details

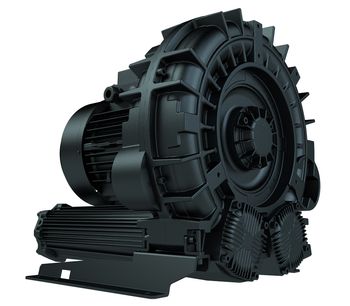

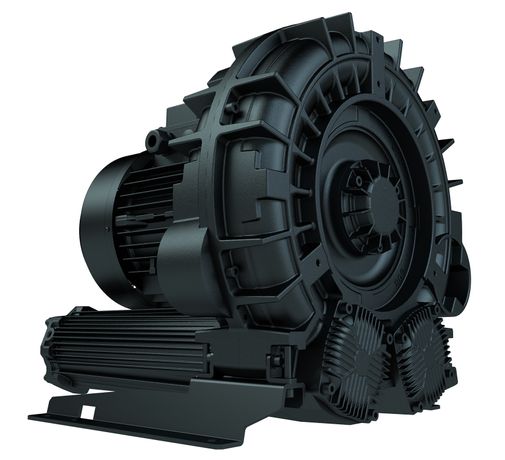

The MOR model is a compact monobloc version characterized by a direct connection between impeller and motor.
All FPZ blowers come equipped with IE3 motors, designed and manufactured according to the directive Ecodesign 2009/125/CE (CE n.640/2009 and UE n. 4/2014) and according to (including future variants) EN 60034-30-1, EN 60034-2-1. These Motors are also designed to perform safely under a wide range of voltages (Wide Range). The IE3 motors also comply to the cURus standard or certification for the Canadian and USA market.
Industries and application fields:
- Energy: Syngas For Cogeneration Plant, Combustion Air Boost For Heat Treatment Furnaces, Methane Gas Compression, Biogas Capture And Recovery
- Food & Beverage: Filling Machines, Labellers, Washer / Dryer, Humidifying, Ice Accumulation Tanks, Packaging Machines
- Wellness & SPA: Backwashing Filters, Water Games, Whirlpool Bath
- Aquaculture: Fish Farms, Fish Feeders, Air Dryers
- Healthcare: Dental Suction, Vacuum Gas Anesthetic
- Pulp, Paper & Printing: Pick&Place
- Packaging: Hot Air Welding
- Wood: Vacuum Tables
- Electronics: Drying Of Printed Circuits, Pick&Place
- Glass: Air Cushion Moving
- Chemical & Pharmarceutical: Centralized Vacuum Systems
Characteristics
- Type: air
- Technology: side-channel
- Number of stages: single-stage
- Other characteristics: aluminum, direct-drive, single-phase
- Flow rate:
- Min.: 0m3/h (0ft3/h)
- Max.: 1,234 m3/h (43,578 ft3/h)
- Operating pressure:
- Min.: 0 mbar(0 psi)
- Max.: 450 mbar (6.527 psi)
- Nominal power:
- Min.: 0.37 kW (0.5 hp)
- Max.: 22 kW (29.91 hp)
