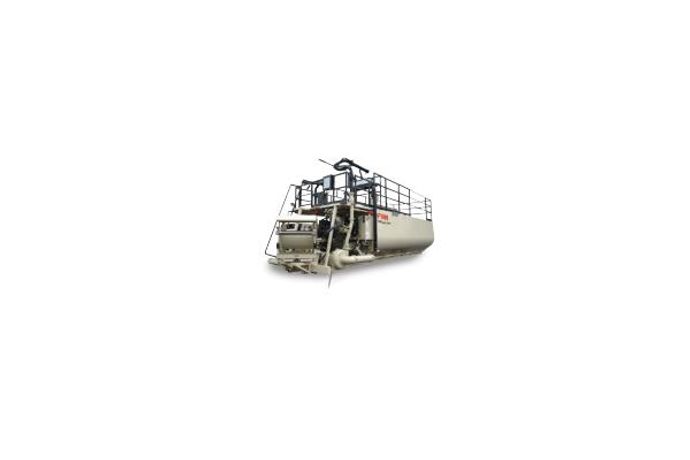

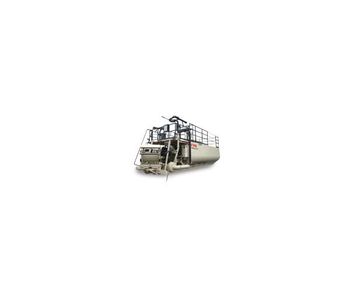

Finn HydroSeeder - Model T330 - Centrifugal Slurry Pump

Designed with time-tested features, the T330 HydroSeeder offers value, reliability and productivity to meet the needs of large-scale applications. The T330 features the highly efficient FINN proprietary centrifugal slurry pump with a 134hp John Deere diesel engine and an independently controlled pump system.

Most popular related searches

Product Overview:

The FINN T330 HydroSeeder provides high capacity and proven design features at an economical price with power and performance to meet the needs of large-scale applications including mine reclamation, highway construction and large commercial jobsites.

Value, Performance & Productivity.

The T330 features a large centrifugal slurry pump and a 134 horsepower, Tier 4 Final John Deere diesel engine with an independently controlled pump system. The unit is also equipped with an independently controlled twin mechanical paddle agitation system, liquid recirculation and robust hydraulic system.

Designed with time-tested standard features, the T330 is priced as a cost-effective unit that is equipped with field-proven technologies. With over 30 years of customer-proven results, the “clump” (clutch/pump) feature utilizes a unique single shaft design to maximize mechanical efficiency, making it the most efficient pumping system available.

Ergonomics & Controls.

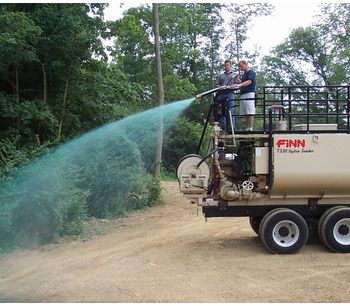

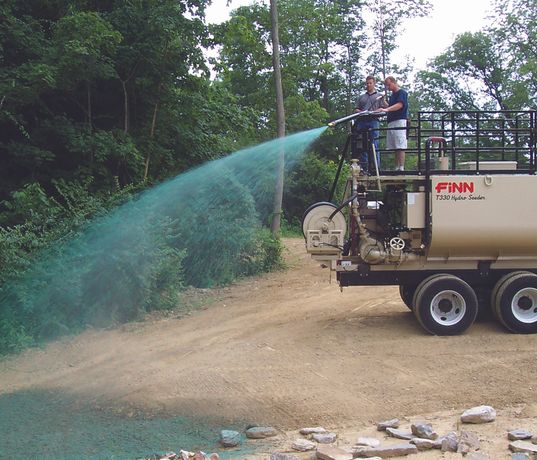

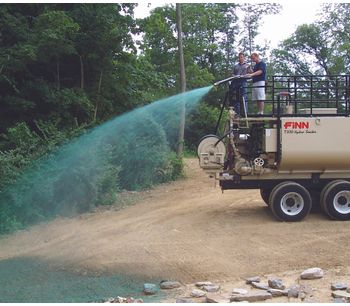

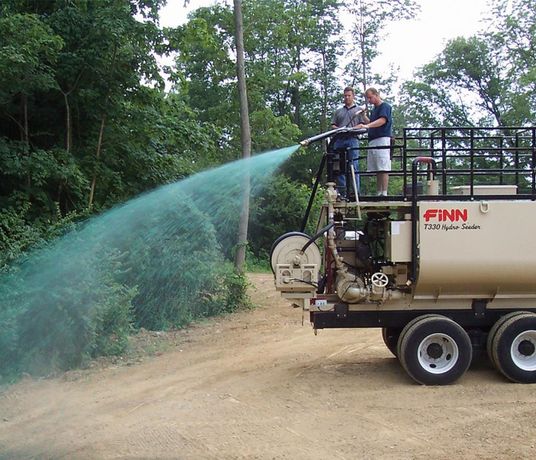

The T330 HydroSeeder is designed to provide operator convenience by integrating an adjustable handle from the passenger side-rear corner of the unit. The engine control panel is conveniently located next to the discharge boom tower putting all engine controls at the operator’s fingertips. In addition, a standard ground level control station with engine start/stop, throttle, and pump controls make spraying from the hose convenient for contractors. A material loading hatch with large opening and curbside hinged lid enables more efficient material loading, and an easy-access ladder provides convenient machine accessibility.

As the world leader for 85 years and inventor of the HydroSeeder, Finn continues to develop and offer high quality equipment for the green industry and practical solutions for erosion and sediment control. Finn and its extensive dealer network are committed to your complete satisfaction.

Tier IV Final Skid Mount Only

Loads per Acre
1*

Working Weight
42,800 lbs. (19,415 kg)

Power
John Deere 4045FC04 (4.5L) Industrial Water Cooled Engine 134 hp (100 kW) Tier 4 Final Diesel

Tank Size
3,000 gal. (11,356 L) work cap. / 3,350 gal. (12,681 L) liquid cap.

Pump
5” x 2.5” (12.7cm x 6.4cm) 400 gpm @ 130 psi, 1” (2.5cm) solid clearance

Discharge Distance
Up to 230 ft. (70m) from discharge tower

HydroSeeder Disclaimers
* Based on 1500 lbs. per acre.
** Working weight includes one full load of fiber mulch and water with no stored materials on deck.

Features and Benefits:

3000 gallon working capacity tank
Tier 4 Final John Deere 4045HFCO4 (4.5L), industrial water cooled, turbo diesel, 134 hp engine
Large loading hatch with pivoting stainless steel bag cutter and safety grate
Spray distance up to 230 feet from the boom
Hydraulic hose reel for easy deployment and stowage convenience
Independently controlled, reversible and variable speed hydraulically powered twin mechanical paddle agitation system
Independently controlled pump and agitator controls
Large slide-gate for ease of mulch stowage on deck

Who Uses the T330 HydroSeeder?

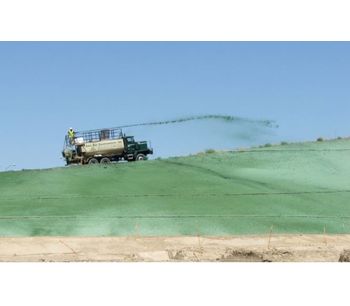

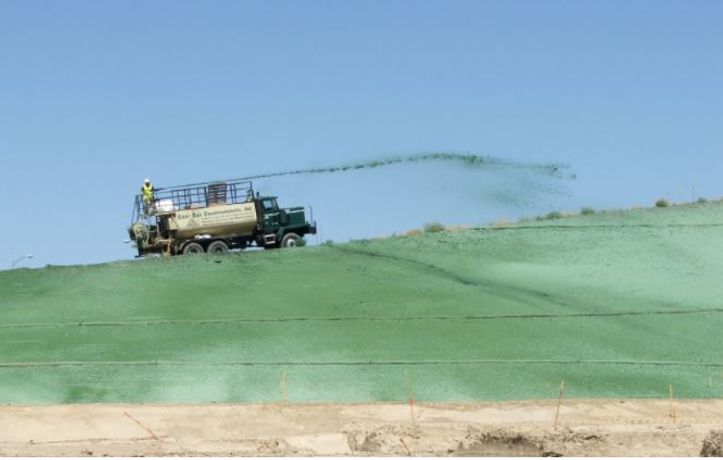

The T330 HydroSeeder is an ideal solution for contractors requiring high capacity for large projects. The T330 can be used for highway, fire and mine reclamation, dust control, golf courses and commercial sites. The T330 offers proven performance and valuable features at an economical price. As the world leader and inventor of the HydroSeeder™, FINN is committed to your business and your complete satisfaction.

Specifications

Power

134 HP (100 kW) John Deere 4045HFC04 (4.5L) industrial water cooled Tier 4 Final Turbo Diesel Engine with over-center clutch, vibration isolated.

Engine Control System

Control panel with digital engine information display, throttle, pump on/off and horn

Engine Safety System

Engine ECU with self diagnostics, including low oil pressure and high temperature shutoff

Tank Size

3,350 gallon (12,681 liter) liquid capacity
3,000 gallon (11,356 liter) working capacity

Fuel Tank Capacity

38 gallon (144 liter)

Pump

Centrifugal 5 in. x 2-1/2 in. (12.7 cm x 6.4 cm)
400 gpm @ 130 psi, 1 in. (2.5 cm) solid clearance

Pump Drive

In-line coupled to air-controlled over-center clutch, pump drive is independent of agitator operation

Agitation

Twin mechanical paddle agitators and liquid recirculation

Agitator Drive

Reversible, variable speed hydraulic motor drive (0-130 rpm)

Discharge Distance

Up to 230 ft. (70 m) from discharge tower

Material Capacity

10,000 lbs. (4,536 kg) granular solids,
1,500 lbs. (680 kg) fiber mulch

Nozzles

(2) narrow fan, (2) wide fan, (2) long distance

Empty Weight

12,314 lbs. (5,586 kg)

Working Weight*

38,864 lbs. (17,628 kg)

Loading Hatch

Large sealed hatch with 24-1/2 in. X 29-1/2 in. opening and a pivoting stainless steel bag cutter and safety grate

Optional Equipment

Stainless Steel Tank, Stainless Steel Agitators, 1-1/4 in.
Hydraulic Hose Reel Package, 1-1/2 in. Hydraulic Hose
Reel Package, Airflush, Radio Remote Control, 2nd Fill
Port, Hardened Pump and Rear Spray Bar
