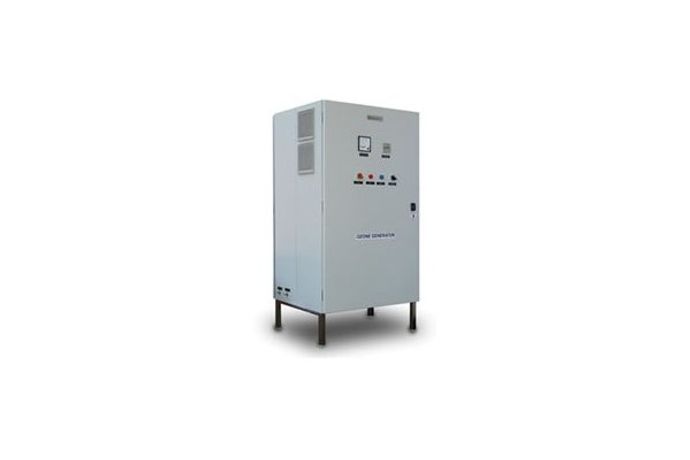

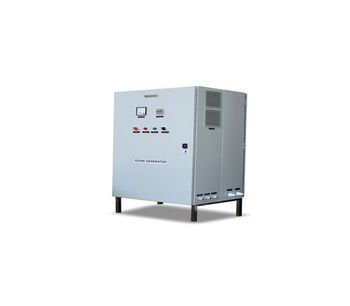

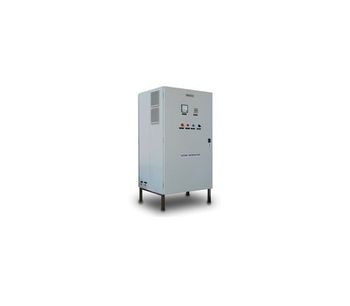

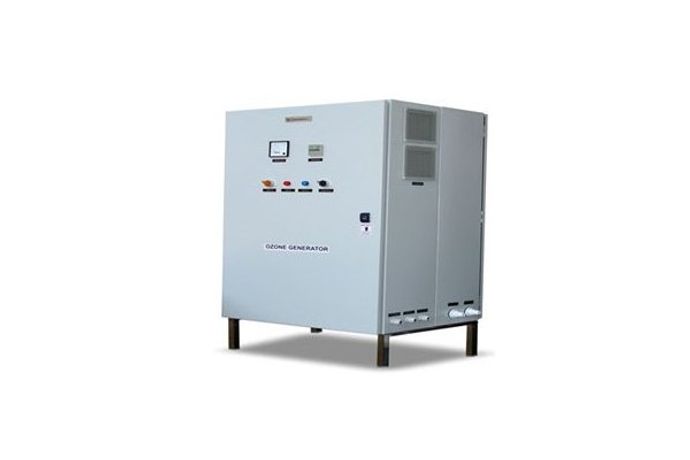

Chemozone - Heavy Commercial & Industrial Water & Wastewater Ozonator System

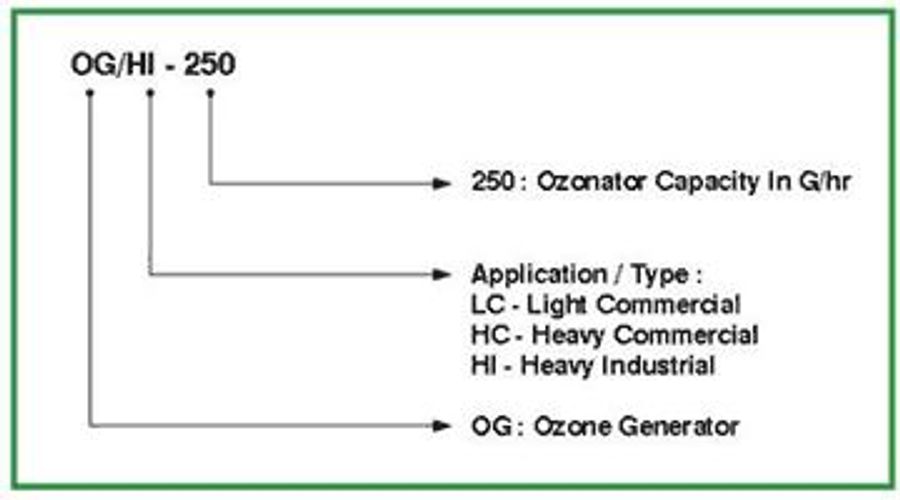

Chemozone heavy commercial & industrial Ozone generator is very widely & effectively used in many industrial applications for water & waste water treatment. This range of ozone generators are used in tertiary treatment of sewage & effluent treatment. CHEMOZONETM Ozone generators are specifically designed for swimming pool and cooling tower water treatment. OG/HC & OG/HI series of ozone generators are industrial grade & can operate 24 x 7 x 365. Major design advantage of these rang is their capability of producing high ozone concentration at lower operating power.
Features
- Heavy Commercial & Industrial use where high ozone concentration is required.
- Ozone output – 10 G/Hr – 1000 G/hr
- Ozone Concentration – 70 – 140 G/m³
- Mainly used for waste water, swimming pool, cooling tower water treatment & similar water & waste water application.
- Internal & outer Ozone cell electrodes are forced water cooled.

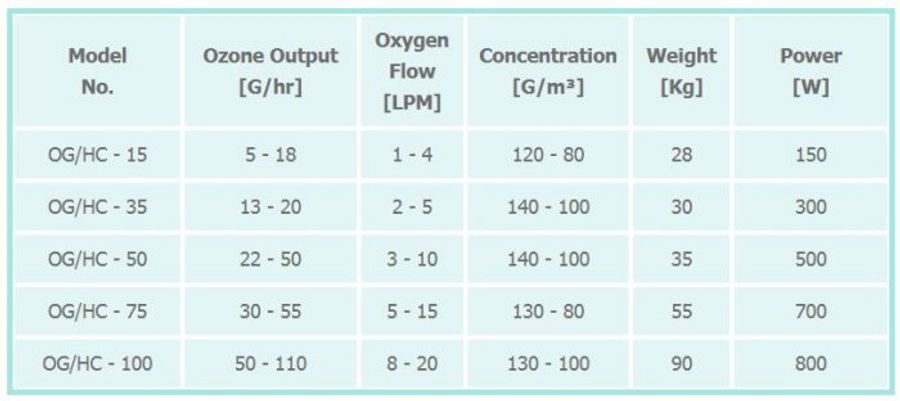

System Specification
- Make: CHEMOZONE

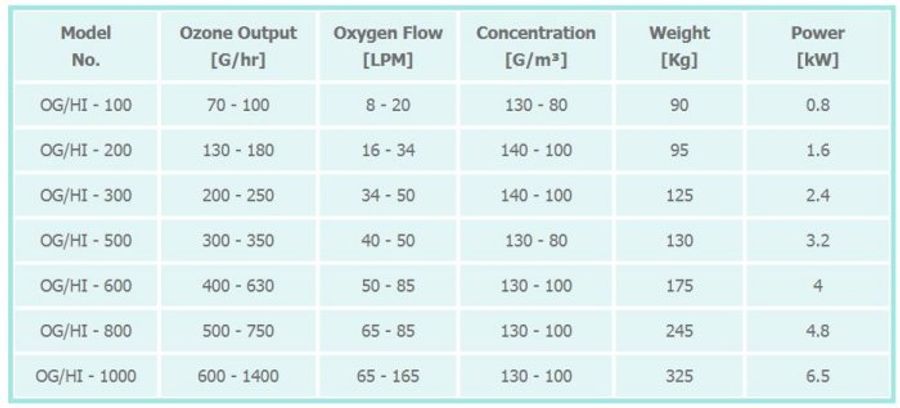

- Ozone Out Put: 10 G/hr – 1 kG / hr 1 6
- Ozone Concentration: 80 G/m³ - 140 G/m3 ²
- MOC of Ozone Cell: SS 316 L
- Enclosure – MOC: Carbon Steel
- Enclosure - Finish: RAL 7035, Structure Powder Coated
- Dielectric: Precision Ceramic
- Corona Discharge: 0.6 – 0.9 W/cm2
- Power Efficiency: 6.0 – 8.0 kW/Kg of O3
- Cell Electrode Cooling: Internal & External
- Cell Cooling Medium: Forced Water
- Power Supply: Switch Mode Power Supply (SMPS) 3
- Power Amplifier: IV – Generation IGBT Technology
- High Frequency Transformer: Forced Air Cooled Ferrite Core
- Indicators: Power + Stand By + Ozone ON
- Variable Ozone Control: 25 % - 100 %
- Service Indicator: Non Re-settable Hr Meter
- Operating Temperature: 15° C - 40° C
- Line Voltage: 230 V ac; 50 HZ / 110 V ac; 60 Hz
- Installation Condition: Floor / Wall
- Specified Life: 20,000 working Hrs 4
- Standard Usage: 24 x 7 x 365 – Commercial & Industrial Use
- Feed Gas: Oxygen
- Concentration: > 90 %
- Due Point: > -45° C
Protections & Safety
Power Board
- Line Voltage surge & spike
- Delayed Soft Start off
- Over temperature protection
- Over Current
- Over Voltage
- Under Voltage
- High Voltage Short Circuit
- High Voltage Open Circuit
- Feed Gas Non Return Valve
- Feed Gas Safety Interlock
- Ozone Non Return Valve
- Fail Proof Back Flow Prevention 5
- Heat Exchanger For Feed Gas 5
- Anti-corrosion lacquer coating
Enclosure
- UL - Certified
- CE - Marked
- Electricals Electronics - IP 54
- Ozone Cell - IP 65
Sensors
- Cooling Water Flow
- Cooling Fan Operation
- Feed Gas Flow
- Cooling Water Temperature
- Power IGBT Temperature
- ORP Controller Connectivity
Applications
- Air Disinfection
- Soak Disinfection
- Clean Room
- Odor destruction in Air
- Smoking Lounges
- Post Fire Odor destruction
- STP foul odor destruction
- Enhance Indoor Air Quality
- VOC reducing in Air
- Drinking & Process water Treatment
- Residential swimming pools
- Public & Olympic size swimming pools
- Pulses & Grains Soak disinfection
- Fruits & Veggies Soak disinfection
- Meat & Sea food Soak disinfection
- Processing & Packing
- Short & Long term Storage
- Cold & Deep Storage
- Commercial Laundry washer
- Denim & Fabric Bleaching
- STP & ETP Tertiary Treatment
- COD & BOD Reduction
- Cooling Tower Water Treatment
Industries
- Research & Development (R & D)
- Air Handling Units (AHUs)
- Dairy
- Aquaculture
- Garment
- Hospitals, OT, ICU
- Housekeeping
- Hotels, Restaurants, Resorts
- Corporate Building
- Pharmaceuticals
- Malls & Theaters
- Food Processing
- Beverage
- Packing & Storage
- Clean Rooms
- Electronics
- Dairy
- Agriculture
- Textile & Garment
- Leather & Tanneries
- Cooling Towers
- Fruit & Veggies
- Meat & Sea Food
- Domestic Waste Water
- Industrial Waste Water
- Laundry Waste Water
- Re cycling of liquid Waste
- Paper & Pulp
- Power Plants
- Steel Plant
